Drill Bit 2,5 mm

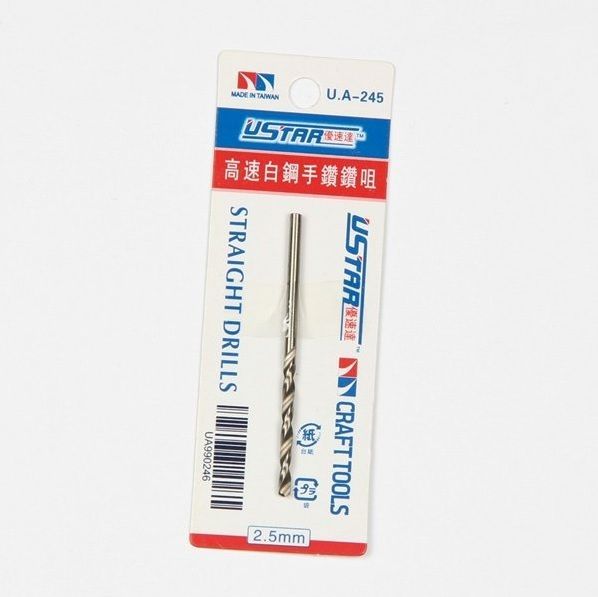

The U-STAR modeling drill bit, 2.5 mm in diameter

A drill bit 2.5 mm in diameter from the workshop range of the U-STAR brand. It serves to drill a clean circular hole in plastic, resin, wood and thin brass sheet. It is precisely this diameter that a modeler needs surprisingly often: to open up the mouth of a larger exhaust, to seat a magnet, for a pin around which a moving part turns, or for a hole for a wire that joins two parts of an assembly more firmly than glue alone could manage.

How to work with the drill bit

• Clamp it into a hand-held pin vise or into the chuck of a micro drill.
• Mark the center of the hole beforehand with the point of a knife or a center punch, otherwise the bit will slide sideways over a curved surface.
• Drill into plastic in two stages: first pilot-drill with a thin bit, and only then go to the final diameter.
• Choose low speeds and do not press. Heat from friction melts plastic and it wraps around the cutting edge.
• Clean up the burr around the hole with the edge of a knife or with fine sanding paper.
• After work, wipe the bit dry, so that no moisture stays on the cutting edge.

Who the drill bit is for

It suits anyone who builds plastic models, completes them with aftermarket parts or makes small details themselves. It will be used by builders of aircraft and of ground equipment, by modelers working with resin and brass and equally by those who join parts with wire pins for strength. It is a consumable tool that blunts in time, so it pays to have a spare at home before you need one urgently.

The drill bit has a sharp point and cutting edges. Protect your eyes while working, hold small parts in a clamp rather than in your fingers, and store the tool out of reach of children.
